The 1.6mm hinge is designed for bond assembly. All hinges above that thickness can be either bonded, fixed with screws, or both.
The Kevlar flex units are impregnated with a flexible urethane and can be ordered in a heavy duty, double kevlar version.
We stock select hinge configurations, however, hinges of varying dimensions can be custom made to order. Hinges can be supplied in lengths from 12mm to 1000mm, or 100mm to 600mm for panel hinges, and can pre-drilled and countersunk.
Unsure of what hinge to select? Try our Hinge Selection Flowchart!

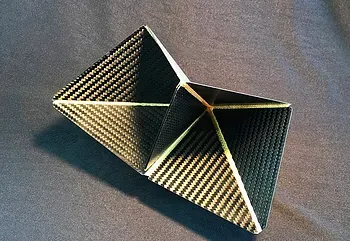

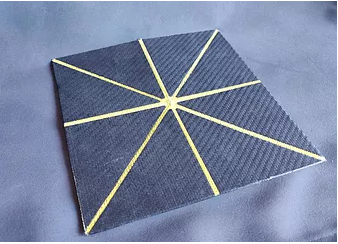

Taking the multi hinge
project and modifying the
carbons shape allowed us
to create a foldable structure
that can be flattened out into a panel.

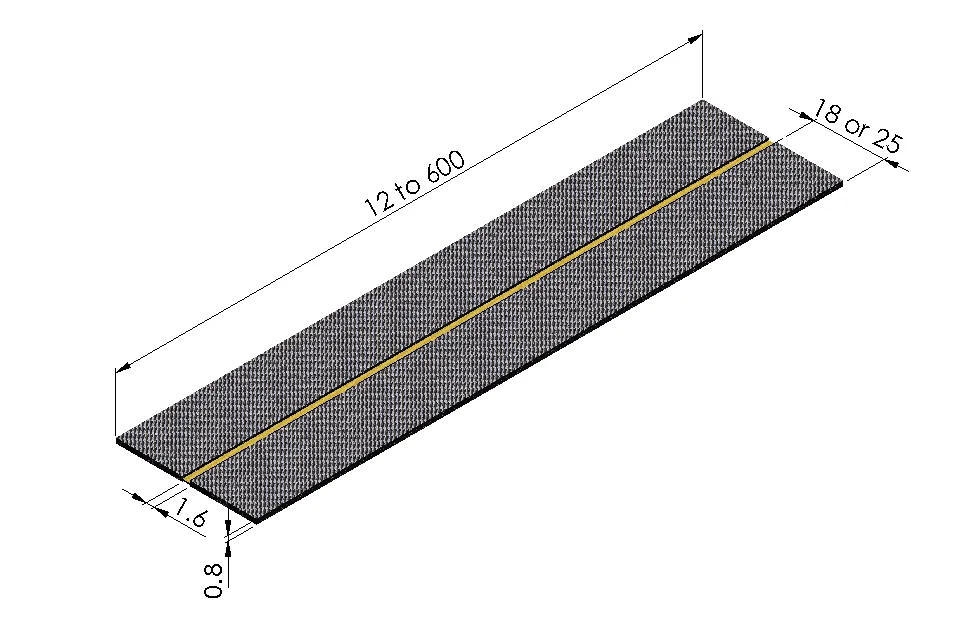

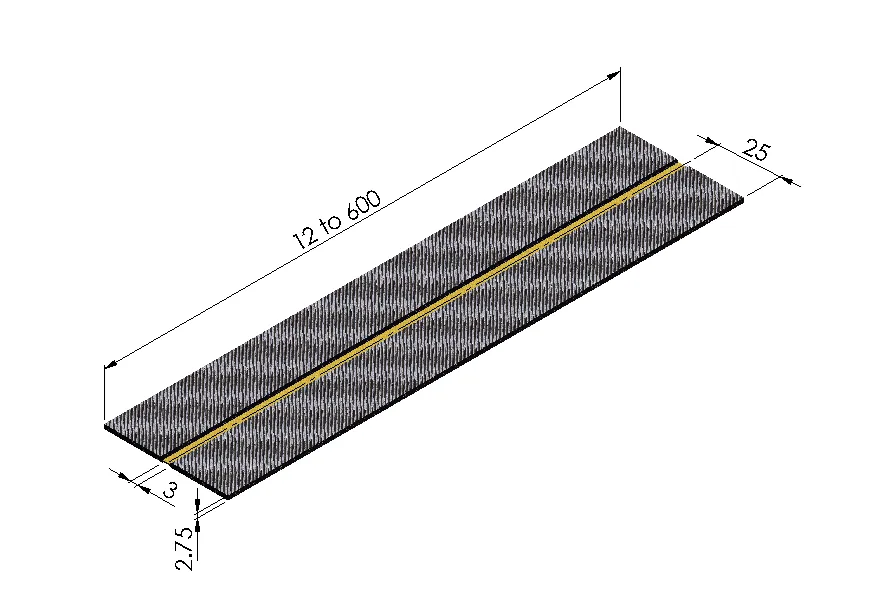

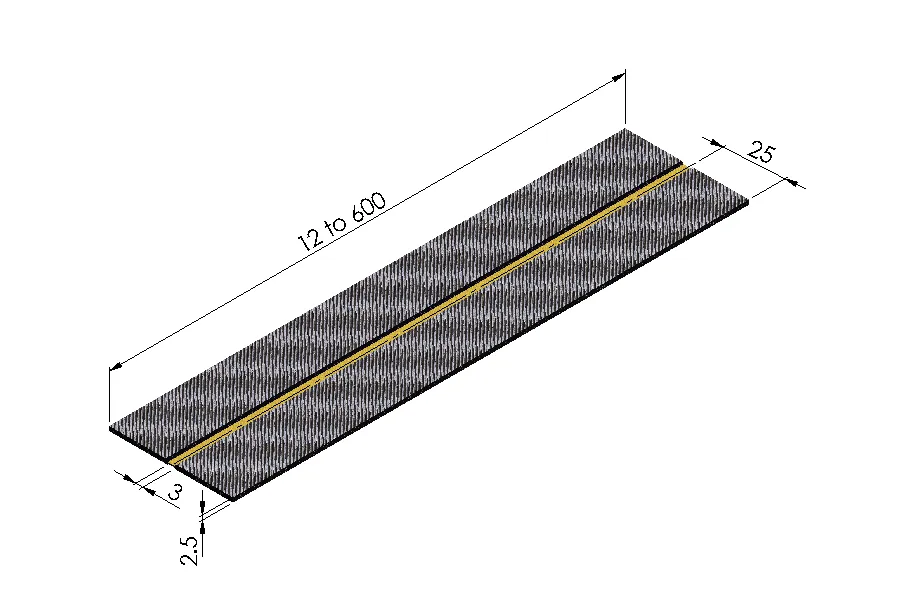

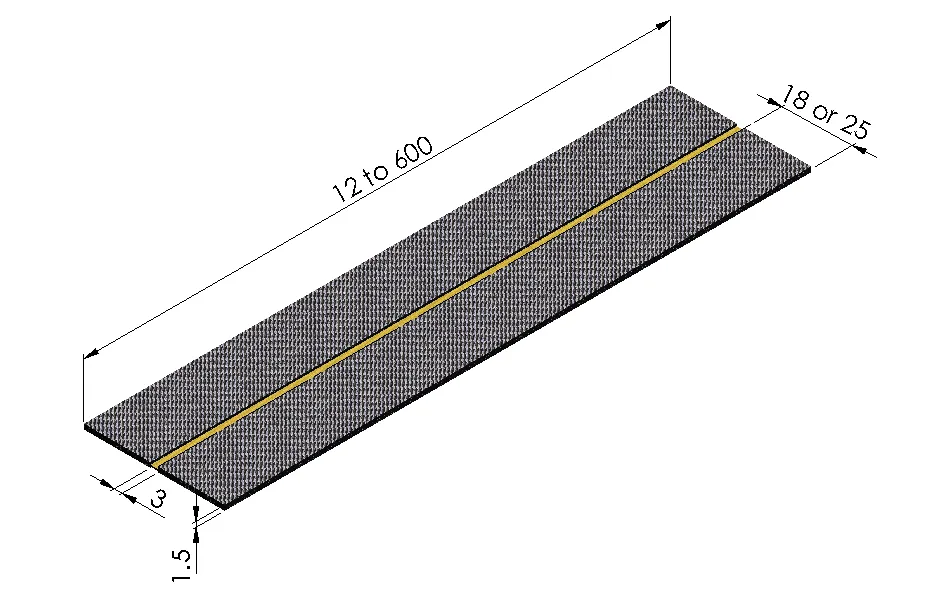

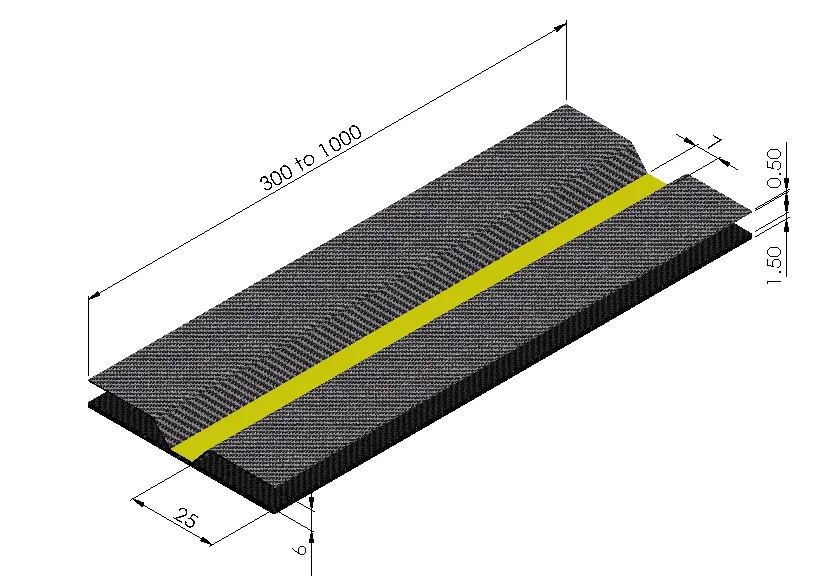

Carbon Kevlar Hinges Sizes
Wings
Flex Unit
Other Features
Length
18mm or 25mm
Carbon Fibre
0.8mm
Single Urethane Impregnated Kevlar
Ultra thin, bond only
50mm to 300mm
18mm or 25mm
Carbon Fibre
1.6mm
Single Urethane Impregnated Kevlar
Thin, bond only
50mm to 1000mm
18mm or 25mm
Carbon Fibre
3mm
Single Urethane Impregnated Kevlar
Bond or small screw assembly
50mm to 1000mm
25mm
Carbon Fibre
3.5mm
Double Urethane Impregnated Kevlar
Bond or screw assembly
50mm to 1000mm
18mm or 25mm
Carbon Fibre
5mm
Single Urethane Impregnated Kevlar
Can counterbore to accept screws
50mm to 1000mm
25mm
Carbon Fibre
5.5mm
Double Urethane Impregnated Kevlar
Can counterbore to accept screws
50mm to 1000mm
28.5mm
Carbon Fibre
16mm
Single Urethane Impregnated Kevlar
For bonding to
6mm thick panels
100mm to 600mm
